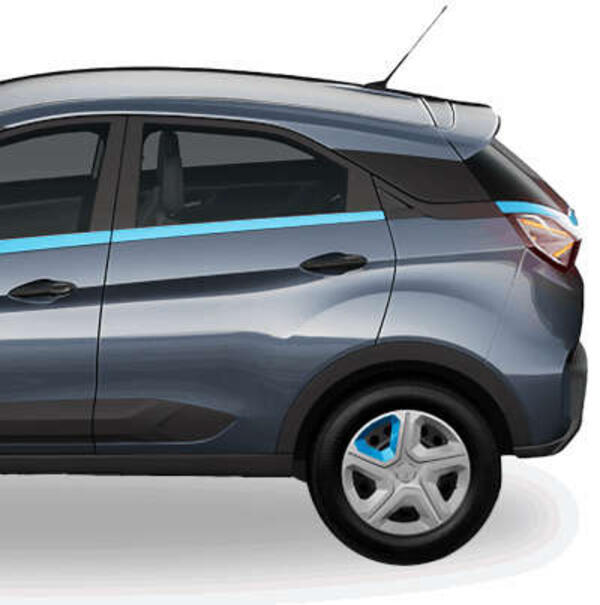

Tata Nexon EV Prime XM (2020 - 2023)

Category: SUV (Sports Utility Vehicle)
Company: Tata Motors
Model: Tata Nexon EV Prime XM (2020 - 2023)
Launch Date: 12 July 2022
Fuel: Electric
Airbags: 2 Airbags (Driver, Passenger)
Engine: Permanent Magnet Synchronous Motor paired to High energy density Lithium-ion battery pack
Range: 312 Km
NCAP Rating: 5 Star (Global NCAP)
Price: ₹ 14.49 Lakh

Engine

Fuel: Electric
Type: Permanent Magnet Synchronous Motor paired to High energy density Lithium-ion battery pack
Transmission: Automatic - 1 Gears, Sport Mode

* This is also known as Gearbox.

Drivetrain: FWD (Front Wheel Drive)

* This is a set of parts which transfer the engine power to the wheels so that the vehicle can drive.

Range: 312 Km
Emission Standard: BS 6
Misc: Regenerative Braking, Pure Electric Driving Mode

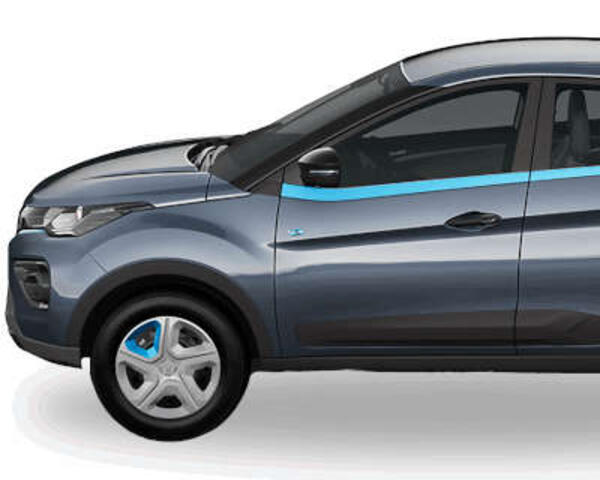

Body

Length: 3993 mm
Width: 1811 mm
Height: 1606 mm
Ground Clearance: 205mm

* The minimum distance between the lowest part of the car and the ground. A higher ground clearance is usually better.

Wheelbase: 2498 mm

* The distance between the centre of the front tyres and rear tyres. A longer wheelbase usually leads to a more comfortable and smoother ride.

Minimum Turning Radius: 5.1 metres

* The minimum radius needed for the car to make a semi circular U turn without skidding. A lower turning radius means that a car needs lesser space to make a U turn.

Kerb Weight: 1400 kg

* The weight of the car including all the standard equipments and all the fluids required, like coolant, engine oil, transmission oil, brake fluid, 90% full fuel tank etc.

Front Tyre: 215 / 60 R16

* The first number represents width of the tyre, the second number is the sidewall height of the tyre, as a percentage of the width i.e. if it is 55 then it means the sidewall height is 55% of the width. The third number, after R represents the inner diameter of the tyre in inches.

Rear Tyre: 215 / 60 R16

Front Suspension: Independent MacPherson strut with coil spring

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Rear Suspension: Twist beam with dual path Strut

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Steering: Power assisted (Electric)
Wheels: Steel Rims
Spare Wheel: Steel
Colours: Signature Teal Blue
Glacier White
Daytone Grey

Safety

NCAP Rating: 5 Star (Global NCAP)

* New Car Assessment Program (NCAP) is a way of testing the safety of cars and is between zero to five stars.

Airbags: 2 Airbags (Driver, Passenger)
ABS (Anti-lock Braking System): Yes

* ABS prevents the wheels from locking up and thus prevents the vehicle from skidding, especially in slippery conditions.

EBD (Electronic Brakeforce Distribution): Yes

* EBD provides proportionate amount of braking force to each wheel so that braking is most efficient in emergency situations.

Brake Asist: Yes

* In an emergency, Brake Assist reduces the braking distance by increasing the braking pressure.

Hill Hold Control: Yes

* This prevents the vehicle from rolling backwards on a slope when starting from a stationary position.

Hill Descent Control: Yes

* This prevents the vehicle from going downhill at unsafe speeds and thus helps to maintain control.

TPMS (Tyre Pressure Management System): Yes

* TPMS alerts when the tyre pressure is too low and may create unsafe driving conditions.

Engine Immobilizer: Yes

* This prevents the engine from being started unless the correct key is present.

Central Locking: Remote

* It allows all the vehicle doors to be locked automatically using one button.

Speed Sensitive Door Lock: Yes

* All the doors lock automatically when a certain speed is reached (usually around 15km/h).

Child Safety Lock: Yes

* This prevents the rear doors from being opened from the inside.

Parking Sensors: Rear
Front Brakes: Disc
Rear Brakes: Drum
Overspeed Indication: 1 beep over 80kmph, Continuous beeps over 120kmph
Seatbelt Warning: Yes
Anchor Points for Child Seat: Yes

Exterior Features

Number of Doors: 5 Doors
Headlamps: Halogen Projector
Follow me home Headlamps: Yes

* The headlights remain switched on for about 10-15 seconds to provide light on the path after ignition has switched off or car has been unlocked.

Headlamp Levelling: Yes

* The height of headlights can be adjusted according to the requirement.

DRL (Daytime Running Lights): LED

* DRLs increase the vehicle visibility during the daytime.

ORVM (Outside Rear View Mirrors): Black
Electrically Adjustable
Indicators on ORVM: Yes
Tail Lamps: LED
Door Handles - External: Black
Body Coloured Bumpers: Yes
Rub Strips: Black

* These are strips on the sides of the car, or along the bumpers, to prevent dents and damage to the car.

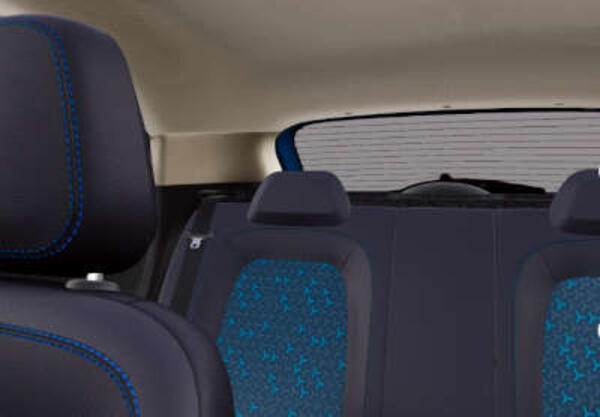

Interior Features

Seating Capacity: 5 Person
Number of Rows: 2 Rows
Headrest: Front & Rear
Seat Upholstery: Fabric
Driver Seat: 6 way manually adjustable (seat forward / back, backrest tilt forward / back, headrest up / down)
Front Seat - Passenger: 6 way manually adjustable (seat forward / back, backrest tilt forward / back, headrest up / down)
Back Pocket in front seat: Yes
Rear Seats: Type: Bench
Folding: Full
Interiors: Dual Tone
Colours: Black and Grey
Door Handles - Internal: Chrome
Door Pockets: Front & Rear
Scuff Plates: Optional

* Plates protecting door sills from scratches, dents and wear & tear etc.

Boot Opening Mechanism: Electric Tailgate Release
Boot access from cabin: Yes
Interior Lights: Cabin Lamp: Front

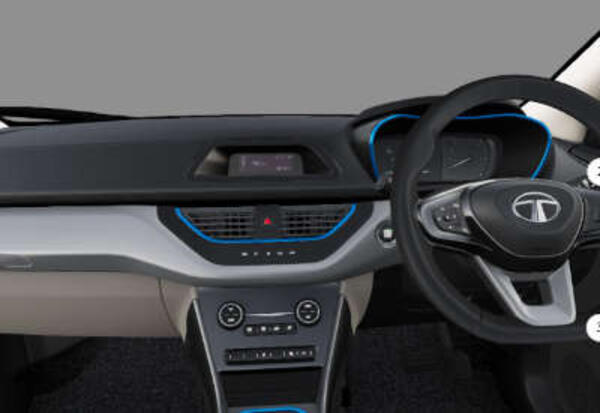

Infotainment System

Type: Digital
Head Unit Size: 2 Din

* DIN refers to the size of car stereo. Single DIN/1-DIN is 2 inch tall and 7 inch wide while Double DIN/2-DIN is 4 inch tall and 7 inch wide.

Integrated Music System: Yes
Number of Speakers: 4
Steering Mounted Controls: Yes
Connectivity: Bluetooth: Phone & Audio Streaming
USB Port: Yes
Radio: Yes
Auxiliary Port: Yes
Voice Recognition: Yes
MID (Multi Information Display): Tachometer: Digital
Tripmeter: Electronic 2 Trips
Fuel Consumption - Instantaneous: Yes
Fuel Consumption - Average: Yes
Low Fuel Warning: Yes
Distance to Empty: Yes
Clock: Digital
Gear Indicator: Yes

* Shows the current gear that the car is in.

Door Ajar Warning: Yes
Instrument Console - Adjustable Brightness: Yes

Comfort

Air Conditioner: Yes (Automatic Climate Control)
Front AC: Single Zone, Common Fan Speed Control
Heater: Yes
Cruise Control: Yes

* This allows the driver to set a desired speed and then lets the vehicle maintain that speed by using the accelerator.

Steering Adjustment: Tilt
Button Start - Keyless: Yes
Windows: Power Windows: Front & Rear
Windows - one touch down: Driver
Windows - one touch up: Driver
Cup holders: Front Only
Power outlets - 12V: 1
Sunvisor - Vanity Mirror: Co-Driver Only
Reminder - Ignition On: Yes
Reminder - Headlight On: Yes

Battery

Battery: 30.2 kWh, Lithium Ion Polymer, 320 Volt, Battery Placed Under Floor Pan

Other Features

OTA Updates (Over The Air): Yes
Find My Car: Yes

* This uses GPS to remember the location of vehicle in a large parking lot or unfamiliar areas.

Geo Fencing: Yes

* This sends an alert whenever the vehicle enters or exits a defined area/place.

Emergency Call System: Yes

* The emergency numbers are called automatically when the vehicle is involved in an incident/accident.

App Features: Car Unlock: Yes
Flash Lights and Sound Horns: Yes
Vehicle Status: Yes
Air Conditioner - Turn on or off: Yes
Misc: OTA updates
Ziptron technology
Tata Motors ZConnect mobile app: 35 smart connected features

Safety and Security: Intrusion alert, Stolen vehicle tracking, Panic notification, Remote immobilization etc
Location based services: Find nearest charging and service station, Find my car, Geo-fencing, Time-fencing etc
20+ vehicle health alerts
Trip analytics and Driver behaviour score
Social Tribes
Smart watch integration

Visit the official website for more information
