TVS iQube Electric ST

Type: Electric Bikes
Company: TVS Motor Company
Model: TVS iQube Electric ST
Launch Date: May 18, 2022
Fuel: Electric
Colours: Pearl White, Titanium Grey Glossy, Mercury Grey Glossy, Copper Bronze Matte, Starlight Blue Glossy, Mint Blue, Shining Red, Lucid Yellow, Titanium Grey Matte, Copper Bronze Glossy, Coral Sand Glossy

Engine

Fuel: Electric

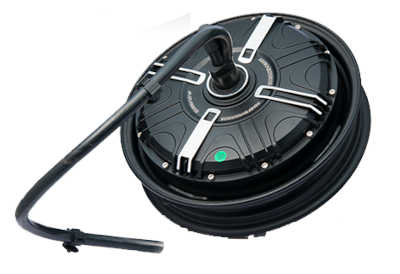

Motor: BLDC (Brushless Direct Current)
Power: 4400 W
Power - Continuous: 3 KW
Torque: 33 Nm

* More torque means that the engine can produce more power and can accelerate more quickly.

Drivetrain: Hub Motor

* This is a set of parts which transfer the engine power to the wheels so that the vehicle can drive.

Start Type: Push Button Start
Range: 145 km/charge
Range - Eco Mode: 145 km/charge
Range - Sports Mode: 110 km/charge
Acceleration: 0 to 40km/h in 4.2s
Maximum Speed: 82 kmph

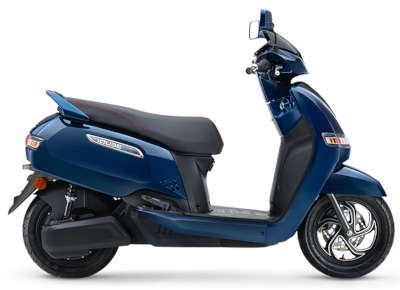

Body

Body Type: Electric Bikes
Length: 1805 mm
Width: 645 mm
Height: 1140 mm
Seat Height: 770 mm
Ground Clearance: 157 mm

* The minimum distance between the lowest part of the vehicle and the ground. A higher ground clearance is usually better.

Wheelbase: 1301 mm

* The distance between the centre of the front tyres and rear tyres. A longer wheelbase usually leads to a more comfortable and smoother ride.

Kerb Weight: 128 kg

* The weight of the vehicle including all the standard equipments and all the fluids required, like coolant, engine oil, transmission oil, brake fluid, 90% full fuel tank etc.

Tyres: Type: Tubeless
Size: Front : 90/90-12, Rear : 90/90-12

* In Tyre Size, the first number represents width of the tyre, the second number is the sidewall height of the tyre, as a percentage of the width i.e. if it is 80 then it means the sidewall height is 80% of the width. The third number represents the inner diameter of the tyre in inches.

Front Suspension: Telescopic

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Rear Suspension: Adjustable Hydraulic Twin Tube Shock Absorber

* The suspension system absorbs the impacts of the road and other bumps leading to a smoother and comfortable drive.

Wheels: Type: Alloy
Size: Front : 304.8 mm, Rear : 304.8 mm
Frame: Tubular Structure
Seat Type: Single
Passenger: Footrest: Yes
Storage: Boot Space: Yes
Storage Under the Seat: 17 L
Additional Storage: 17 L
Carrying Hook: Front & Rear
Lights: Head Lights: LED
Tail Lights: LED
Indicators: LED
Colours: Pearl White, Titanium Grey Glossy, Mercury Grey Glossy, Copper Bronze Matte, Starlight Blue Glossy, Mint Blue, Shining Red, Lucid Yellow, Titanium Grey Matte, Copper Bronze Glossy, Coral Sand Glossy

Safety

EBS (Electronic Braking System): Yes

* EBS monitors the speed and weight of the vehicle and adjusts the braking force to each wheel accordingly, to prevent skidding.

Front Brakes: Disc
Diameter: 220 mm
Rear Brakes: Drum
Diameter: 130 mm
Anti-theft Alarm: Yes

Features

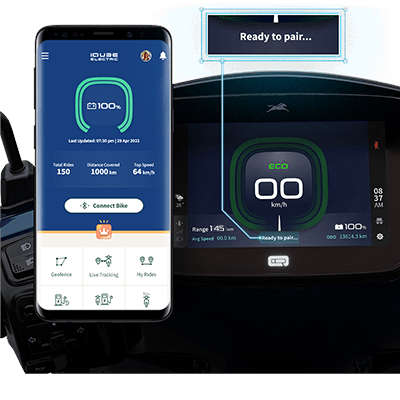

Instrument Console: Digital
Display: 7 Inch TFT
Speedometer: Digital
Tripmeter: Digital

* This instrument can be used to record the distance of individual journeys.

Clock: Yes
Navigation: Yes
Connectivity: Bluetooth
Alerts - Call/SMS: Yes
USB Charging: Yes
Speakers - External: Yes
Reverse Assistance: Yes
Gradeability: 10°

* This represents the ability of the vehicle to climb slopes.

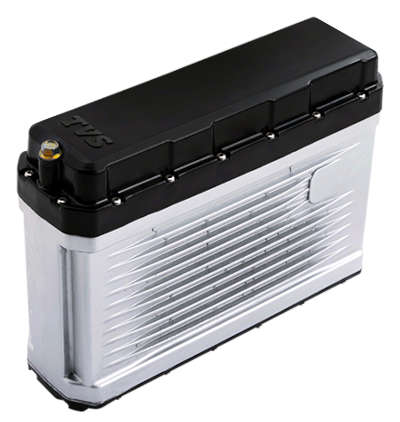

Battery

Battery Type: Lithium Ion
Battery Capacity: 4.56 kwh
Charging: Charging Point: Yes
Fast Charging: Yes
Charger Output: 1500 W, 950 W
Low Battery Indicator: Yes
IP Rating of Battery: IP67 (Battery)

* IP rating (Ingress Protection rating) classifies the degree of protection provided by the battery, against the intrusion of dust and water.

Other Features

Mobile App: Yes
Music Player: Yes
Geo Fencing: Yes

* This sends an alert whenever the vehicle enters or exits a defined area/place.

Over The Air Updates: Yes
Misc: Number Plate Lamp, Parking Assist, Live Location Status, Crash & Fall Alert, GSM Connectivity, Parking Brake Lever, BMS-Controlled Protection System, Spike Proctection, Resolution - 800 X 480 PPI, Brightness - 1000 LUX Dark Mode, Iincognito Mode, Flip Key with LED Light, Riding Modes - Eco, Power, Hazard Lamp, Cluster Themes, HMI, Document Storage
Visit the official website for more information
